Ground Station Overview

Architecture

The TEMPEST ground station uses a browser-based interface that communicates with the satellite through a Pico MCU radio relay.

┌──────────────┐    USB CDC     ┌──────────────┐    RF Link    ┌──────────────┐
│   Browser    │◄──(WebSerial)──►│  GS Pico MCU │◄──(RFM69/95)──►│  Satellite   │
│  (Chrome)    │                │  (Radio HW)  │               │  (Pi Zero)   │
└──────────────┘                └──────────────┘               └──────────────┘

Browser (FSC-GS): Runs entirely client-side. No server backend required. Uses the WebSerial API (Chrome/Edge) to communicate with the GS Pico MCU via USB CDC serial.

GS Pico MCU: Bridges USB serial to radio. Forwards commands from browser to satellite via radio uplink and relays telemetry from satellite to browser via radio downlink.

Design System

The ground station interface follows the Astro UXDS (US Space Force) design system:

  • Dark theme with space operations color palette
  • Global Status Bar (GSB) with app metadata, tabs, monitors, and UTC clock
  • Classification banners (UNCLASSIFIED through TOP SECRET//SCI)
  • Status symbols for connection monitoring
  • Roboto / Roboto Mono typography

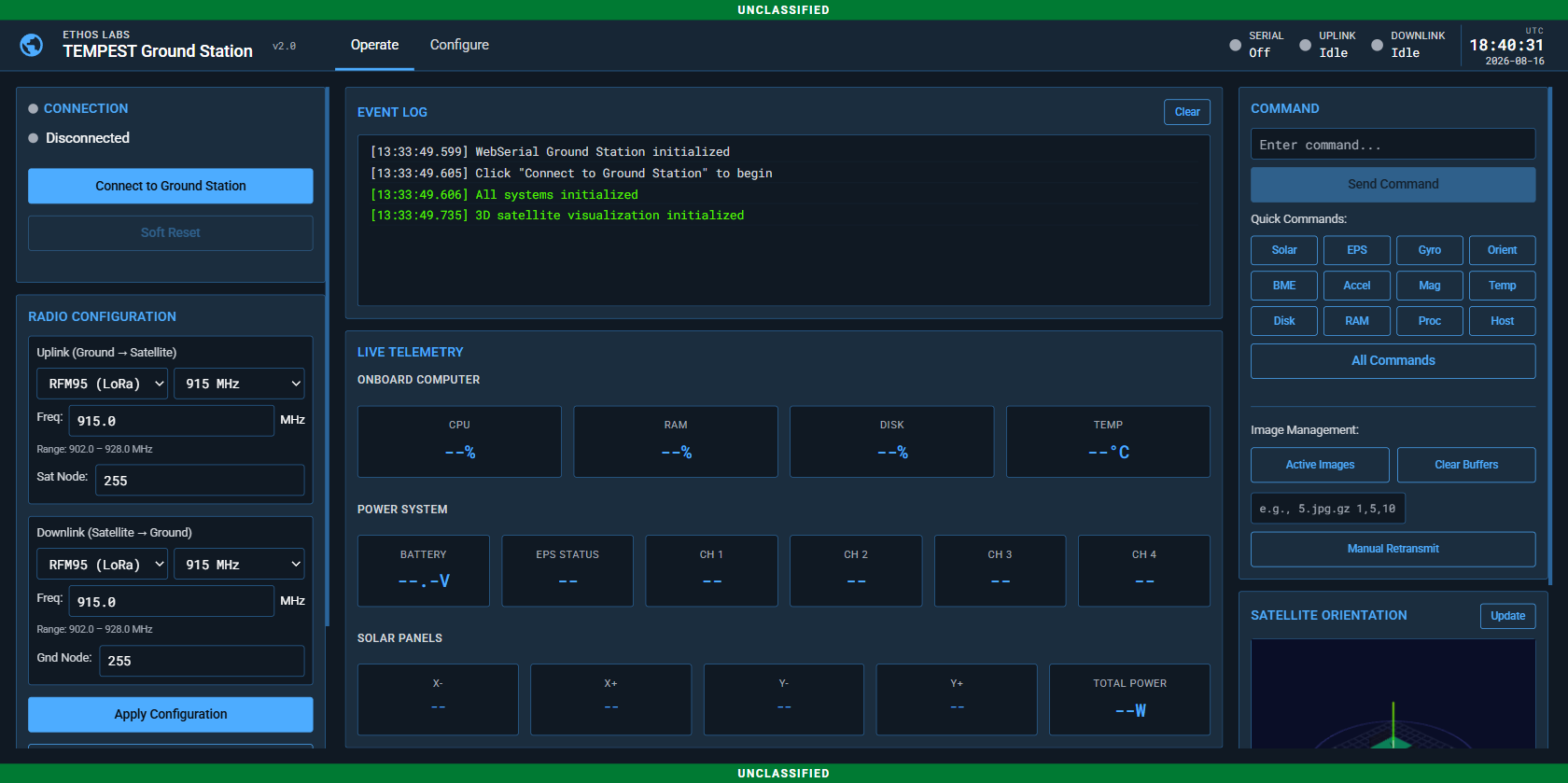

Placeholder: Ground station full interface screenshot

Interface Layout

The Operate tab uses a three-column layout:

Left Column — Connection and Radio Configuration

  • Serial connection status and controls
  • Radio uplink/downlink configuration (type, frequency, band, node addresses)
  • TX/RX LED indicators
  • Settings button (switches to Configure tab)

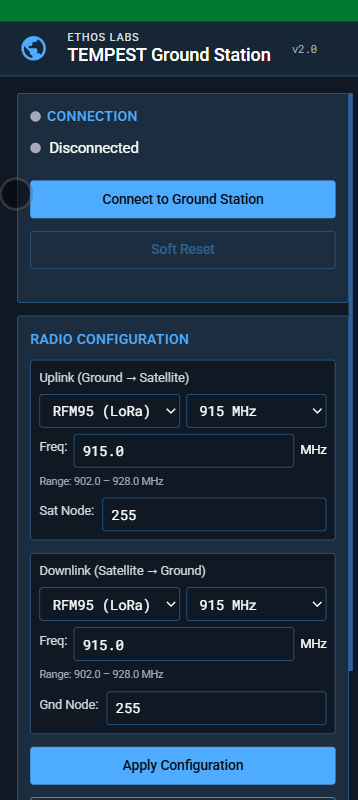

Placeholder: Left column - connection and radio panels

Middle Column — Event Log and Live Telemetry

  • Event Log: Scrollable terminal showing timestamped command/response traffic
  • Live Telemetry: Three sections updated by incoming packets:
    • Onboard Computer: CPU, RAM, Disk, Temperature
    • Power System: Battery voltage, EPS status, 4 channel states
    • Solar Panels: X-, X+, Y-, Y+ voltage/current, total power

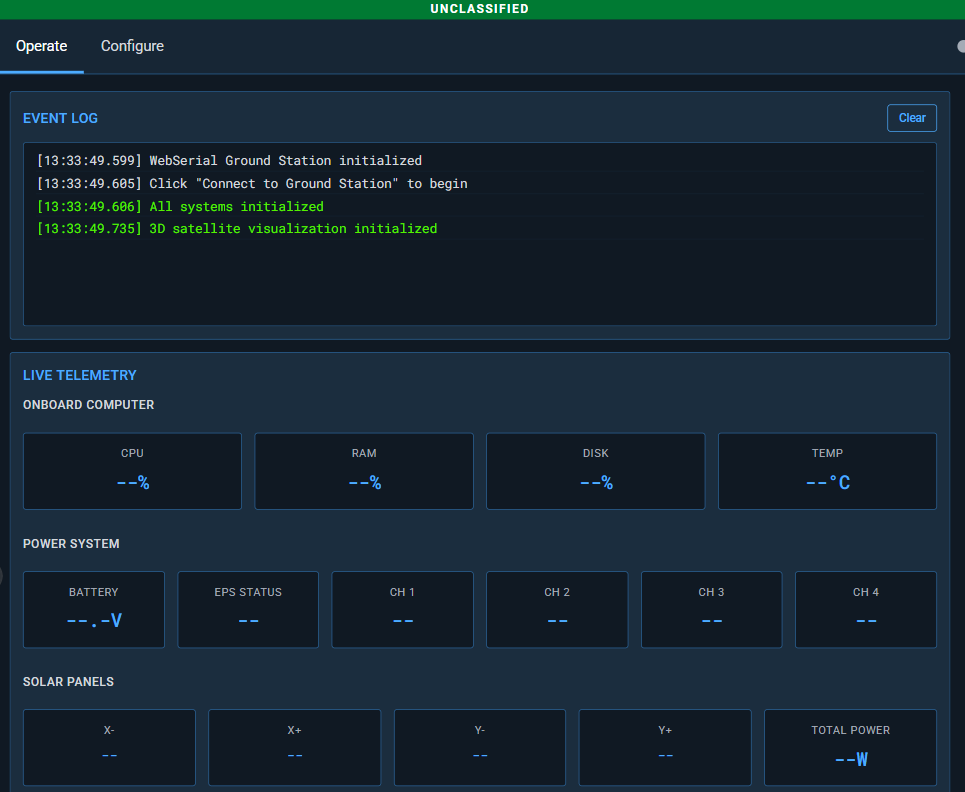

Placeholder: Middle column - event log and telemetry panels

Right Column — Command and Orientation

  • Command Center: Text input, quick command buttons, help reference
  • Image Management: Active images, buffer controls, manual retransmit
  • Satellite Orientation: 3D Three.js visualization with Roll/Pitch/Yaw readout

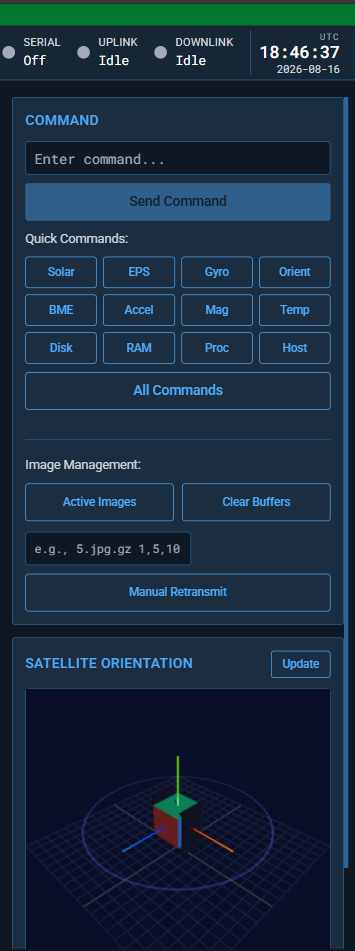

Placeholder: Right column - command center and 3D orientation

Global Status Bar (GSB)

The GSB spans the top of the interface and contains:

Element Description
App Icon Globe SVG icon
App Meta "ETHOS Labs" domain + "TEMPEST Ground Station" name
Version v2.0
Tabs Operate / Configure
Serial Monitor Connection status (On/Off) with status symbol
Uplink Monitor TX activity flash
Downlink Monitor RX activity flash
UTC Clock HH:MM:SS time and YYYY-MM-DD date

Placeholder: Global Status Bar close-up

Configure Tab

The Configure tab provides settings panels:

  • Serial Port: Baud rate, data bits, stop bits, parity, flow control
  • Classification: Display classification level selector
  • About: Application info, version, organization

Browser Requirements

Requirement Details
Browser Chrome 89+ or Edge 89+
API WebSerial API
Connection USB to GS Pico MCU
HTTPS Required for WebSerial (or localhost)

The live deployment is available at fsc-gs.ethoslabs.space.

File Structure

FSC-GS/
├── index.html                    # Main HTML (Astro UXDS layout)
├── styles.css                    # Astro UXDS token system and styles
└── scripts/
    ├── main.js                   # UI logic, tabs, clock, classification
    ├── telemetry.js              # Binary packet unpacking
    ├── serial-communication.js   # WebSerial connection and data routing
    ├── image-processing.js       # Image reception and reconstruction
    └── 3d-visualization.js       # Three.js satellite orientation
